Trackless Unguided Pipe Welding Robot is an automated pipe welding system being specially designed for pipe welding. It is good for welding pipes with diameter range from φl68mm - φ1800mm. Featured with weld seam tracking system and orientation sensors, weld groove parameters such as the width, depth, and angle can be automatically tracked in a precise manner, with tracking accuracy of ±0.2mm.
Do you have any questions about our Robotic Welding Systems?
Contact us and one of our experts will be glad to help you.
Detailed Introduction
Multiple DOF swing welding system

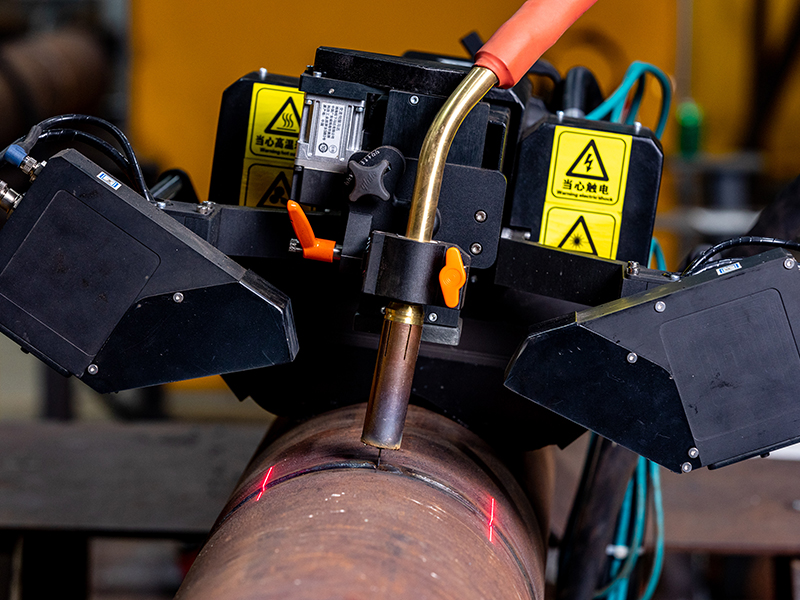

Laser vision seam tracking system (dual laser vision system)
On-board wire feeding system
Permanent magnet adhesion walking mechanism
Technical advantages
Portable design: Light and small;
Easy to operate: No track needed, friendly UI, only three days professional training required to operate this bot;
Automatic adaptation to groove: Fully automatic groove adjustment according to groove gap change, welding thickness difference, etc.
Automatic adaptation of weld: Torch has the ability of self-regulation in the vertical direction, which is especially suitable for the self-adaptive adjustment in the case of tack welding points, etc. and calling parameters live time;
Wide welding range: It meets requirements of automatic welding of various pipe diameters, with high weld quality and aesthetic appearance;
High tracking accuracy: Tracking accuracy of weld ± 0.2mm;
High reliability: Low failure rate, MTBF≥ 1000 hours;
Easy Maintenance: Modular design, save maintenance cost and time.
Application Scope
Pipe diameter range: φ168mm-φ1800mm
Welding groove types: V, X, U, J
Pipe materials: carbon steel and alloy steel
Metal thickness range: 6mm - 60mm
Configuration of Pipe Welding Robot

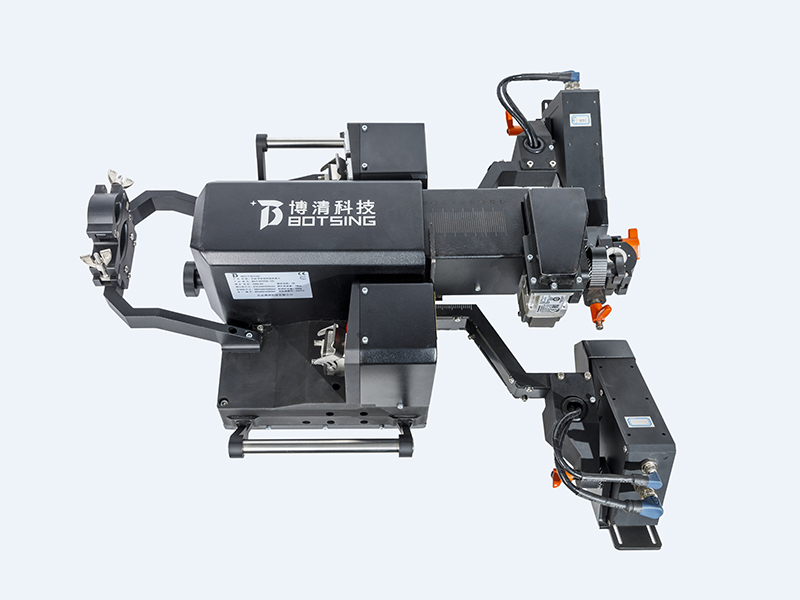

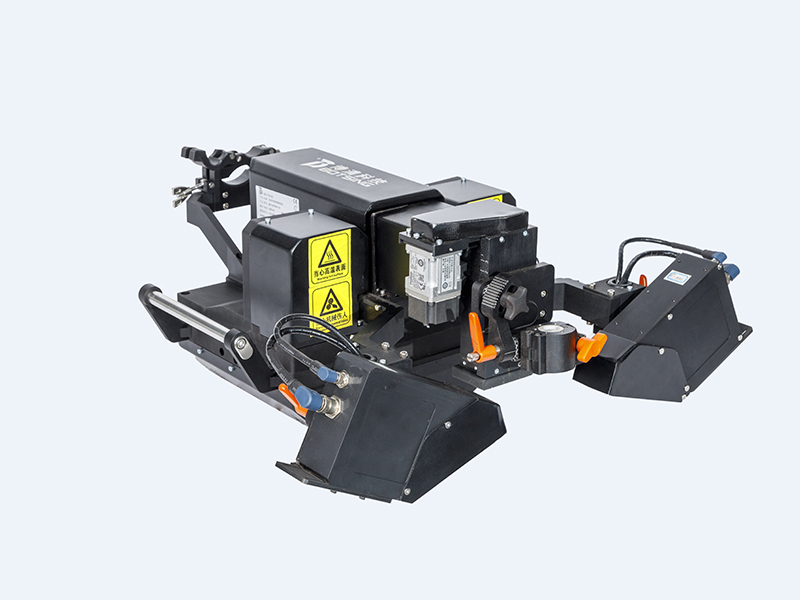

Trackless Unguided Pipe Welding Robot

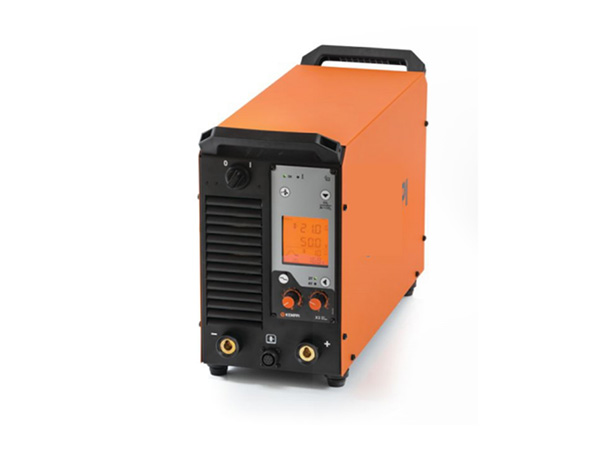

Welding Power Source

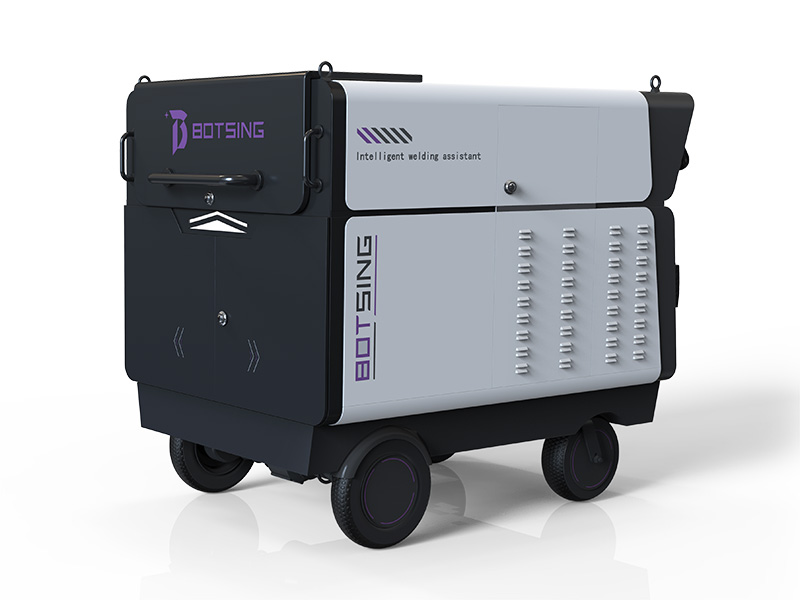

Control Cabinet
Basic Specifications
Product weight
17kg
Weight of wire reel
5kg (standard), or customized
Max. load
60kg
Max. travel speed
560mm/min
Dimensions
560mm (L)*480mm (W) * 225mm (H)
Weld tracking accuracy
±0.2mm
Mechanical Specifications
Drive mode
wheels
Torch motion
linear
Linear motion range of welding torch
±70mm
Stick-out range
±30mm
On-board wire feed
Yes
Torch pitch angle
±15°
Other Specifications
Ambient temperature
-10℃~40℃
Relative humidity
below 90%
Control cable
10m standard length, extended length available upon request
Video
An innovative alternative to manual welding and semi-automatic welding: Trackless Unguided Robotic Welding
Currently, welding of large-scale structural parts is performed mainly by manual or semi-automatic welding. A lot of hidden costs will be needed in the manual welding operation. A human welder needs to be trained for a long time to achieve sophisticated skills for quality welding operation. They may make mistakes during manual welding to affect production time, weld quality and costs. Manual welding may cause health and safety problems to the human welders due to the hazardous working environments full of flash, fumes, sparks, and heat. Semi-automatic welding in large structural components is affected by guiding tracks, which limits its degree of automation especially in the application scenarios with curved and irregular surface welds. Comparing with manual welding and semi-automatic welding, trackless unguided all-position robotic welding is an optimal alternative in the large-scale structural parts manufacturing industry, which can greatly improve welding quality and efficiency.
Disadvantages of Manual Welding
Unstable weld quality
Low efficiency
High labor costs
Pneumoconiosis
Employee risks
High management costs
Disadvantages of Semi-automatic Welding
Guiding track needed
Not applicable to the welding of irregular seam, especially curved surfaces
Multiple DOF swing welding system
Laser vision seam tracking system (dual laser vision system)
On-board wire feeding system
Permanent magnet adhesion walking mechanism
Unstable weld quality
Low efficiency
High labor costs
Pneumoconiosis
Employee risks
High management costs
Guiding track needed
Not applicable to the welding of irregular seam, especially curved surfaces
